Powered Anode Rod vs Sacrificial Anode Rod

Every tank-style water heater depends on an anode rod to prevent the steel tank from corroding from the inside out. What most homeowners do not realize is that there are two fundamentally different technologies that do this job - and choosing between them has a real impact on how often you service your water heater, how well it handles your local water, and whether you ever have to deal with a rotten egg smell.

This page breaks down exactly how powered anode rods and sacrificial anode rods differ, when each makes sense, and which one Chromex recommends for long-term tank protection.

How a Sacrificial Anode Rod Works

A sacrificial anode rod is a passive corrosion protection device. It is typically made from magnesium or aluminum wound around a steel core, and it works through a process called galvanic corrosion. When two different metals are submerged in water, the more reactive one corrodes first. Magnesium and aluminum are both more reactive than the steel used in water heater tanks, so the rod attracts corrosive elements and deteriorates in place of the tank lining.

The name is literal: the rod sacrifices itself so the tank does not have to. As long as the rod is intact and functioning, the steel tank is protected. The problem is that the rod depletes over time and must be replaced on a schedule - typically every three to five years, though hard water and softened water both accelerate that timeline significantly.

The U.S. Department of Energy recommends inspecting the anode rod every three to four years as part of routine storage water heater maintenance. That inspection requirement applies to sacrificial rods, which can and do deplete without any visible external warning signs.

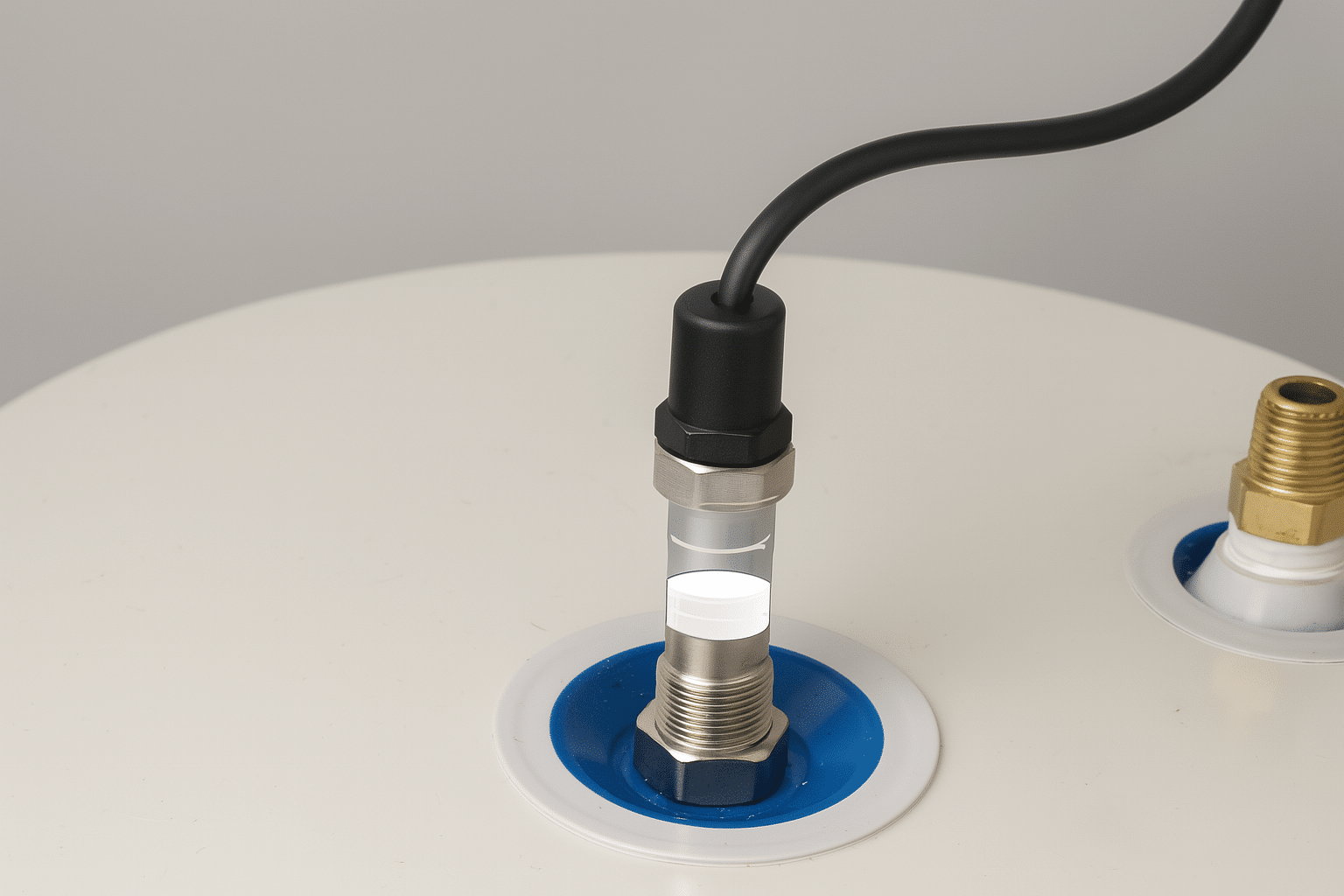

How a Powered Anode Rod Works

A powered anode rod - also called an electric anode rod or ICCP (Impressed Current Cathodic Protection) anode - takes a completely different approach. Instead of a reactive metal that corrodes, it uses an inert titanium rod connected to a small power supply. A low-voltage DC current passes continuously through the rod, making the steel tank lining cathodic - meaning corrosive ions in the water are repelled from the tank surface rather than attracted to it.

Because the titanium rod does not participate in the corrosion reaction, it does not wear down or deplete. The same rod that you install today continues to protect the tank for as long as it is powered and in place. There is no replacement cycle, no scheduled inspection requirement, and no risk of arriving at a service visit to find the rod consumed and the tank already corroding.

As High 5 Plumbing notes, powered anode rods represent a significant advancement in water heater protection technology - unlike traditional sacrificial anodes that rely on natural galvanic corrosion, powered rods use electrical current to actively protect the tank. The practical difference for homeowners is that powered rods deliver consistent, maintenance-free protection regardless of water conditions.

Powered vs Sacrificial Anode Rod: Full Comparison

Here is how both rod types compare across every factor that matters for a residential water heater installation:

Table reflects general specifications. Sacrificial rod lifespan varies by rod material, tank size, and local water chemistry.

The Three Differences That Matter Most

1. Lifespan and Maintenance

This is the most significant practical difference. A sacrificial rod must be replaced when it depletes - typically every three to five years under standard conditions, and as fast as every one to two years in hard water or softened water homes. If it is not replaced in time, the tank becomes the target for corrosion.

A powered rod does not deplete. Once installed, it continues to protect the tank indefinitely. The only ongoing action required is keeping the power cord plugged into a nearby outlet. According to the U.S. Department of Energy, proper anode rod maintenance is one of the most important factors in extending the lifespan of a storage water heater - a standard that powered rods meet without any recurring service requirement.

2. Performance in Hard and Softened Water

Sacrificial rods are highly sensitive to water chemistry. Magnesium rods deplete much faster in hard water because high mineral content increases the rate of galvanic reaction. In softened water, the sodium ions left behind by water softening systems accelerate depletion even further - to the point where a magnesium rod in a softened water home may need inspection annually.

A powered rod is completely unaffected by water chemistry. The ICCP current provides consistent electrochemical protection regardless of whether the water is hard, soft, mineral-rich, or treated. For households with water softeners or high-mineral well water, this is the decisive advantage.

3. Rotten Egg Odor

The sulfur smell in hot water is caused by hydrogen sulfide gas produced by sulfur-reducing bacteria that thrive in the electrochemical conditions inside aging tanks. Magnesium rods can actually worsen this problem in some water types because their high electrochemical potential creates an environment where these bacteria flourish.

A powered rod disrupts the electrochemical conditions that allow sulfur-reducing bacteria to survive, which is why odor elimination is one of the most commonly reported outcomes after installation. For tanks with an active rotten egg smell, the Powered Titanium Anode Rod Kit with 32 oz Hydrogen Peroxide combines the powered rod with a hydrogen peroxide treatment to address existing odor and prevent recurrence in one service session.

When a Sacrificial Anode Rod Still Makes Sense

Sacrificial rods are not obsolete. There are situations where they remain the right choice:

• Budget-constrained replacement: If a tank is approaching end of life and full replacement is imminent, a low-cost sacrificial rod extends protection without a large upfront investment.

• Tanks without a nearby electrical outlet: A powered rod requires a power source. If there is no outlet within cord distance of the anode port, a sacrificial rod is the only viable option.

• Bradford White and outlet-anode configurations: Some tank designs route the anode through the hot water outlet. The Chromex powered rod is designed for standard top-port tanks. For these configurations, a sacrificial rod from the Magnesium Anode Rods collection or Aluminum Zinc Anode Rods collection is the correct fit.

• Second anode port: If your tank has two anode ports and you want a sacrificial rod in the second port alongside a powered rod in the primary port, magnesium or aluminum remains appropriate for the secondary position.

Who Should Choose the Chromex Powered Anode Rod?

Homeowners Replacing a Depleted Sacrificial Rod

If you are servicing your water heater because the existing rod has worn down, this is the ideal opportunity to upgrade to a powered rod and end the replacement cycle entirely. The Chromex Powered Titanium Anode Rod fits 40-89 gallon tanks with a standard top anode port and ships with all hardware needed for a complete DIY installation.

Hard Water and Softened Water Households

If your home has high mineral content in the water supply or uses a water softener, a powered rod is the more reliable long-term choice. Sacrificial rods in these conditions deplete at rates that make the replacement cycle costly and easy to miss.

Homeowners with Rotten Egg Smell in Hot Water

The ICCP current disrupts the bacteria responsible for sulfur odor. For active odor issues, pair the powered rod installation with a hydrogen peroxide treatment for immediate deodorization and long-term odor prevention.

Plumbers and Property Managers

A powered rod is a corrosion protection solution that requires no recurring service visits. For multi-unit properties or high-volume service routes, this simplifies ongoing maintenance significantly. Browse the full Powered Anode Rods collection to see all available options.

Shop the Chromex Powered Titanium Anode Rod - permanent protection, everything included, no replacement cycle.

Powered vs Sacrificial Anode Rod FAQs

1. What is the main difference between a powered and a sacrificial anode rod?

A sacrificial anode rod corrodes itself over time to protect the steel tank - it is made from magnesium or aluminum and must be replaced when depleted. A powered anode rod uses a low-voltage DC current through an inert titanium rod to achieve the same protective result without consuming any material. The powered rod never depletes, never needs replacement, and provides continuous protection as long as it is connected to power.

2. How long does a sacrificial anode rod last?

Under standard municipal water conditions, a magnesium or aluminum sacrificial anode rod typically lasts three to five years. In hard water areas, that lifespan can shrink to one to two years. In homes with water softeners, sodium ions from the softening process accelerate depletion further. GE Appliances service documentation notes that failure to replace a depleted anode rod can void the water heater tank warranty.

3. Does a powered anode rod actually eliminate the rotten egg smell?

Yes, in most cases. The sulfur smell in hot water comes from hydrogen sulfide gas produced by sulfur-reducing bacteria. These bacteria thrive in specific electrochemical conditions inside the tank. A powered rod disrupts those conditions continuously, preventing bacterial activity. Most homeowners report significant odor reduction within 24-48 hours of installation. For active odor at the time of installation, combining the powered rod with a 6% hydrogen peroxide tank treatment addresses the existing bacteria immediately.

4. Can I use a powered anode rod with a water softener?

Yes. Powered rods are actually the preferred option for homes with water softeners. Softened water accelerates the depletion of magnesium sacrificial rods significantly because of the sodium ions left by the softening process. An ICCP-based powered rod is unaffected by water chemistry - the current provides protection regardless of how the water is treated or conditioned.

5. Is a powered anode rod worth the higher upfront cost?

For most homeowners, yes. A sacrificial anode rod costs $20-50 per replacement, but the cost compounds over time with repeated purchases, inspection labor, and the risk of missing a replacement window and allowing corrosion to begin. A powered rod is a single purchase with no ongoing replacement cost. In hard water regions or softened water homes where sacrificial rods deplete every one to two years, the payback period for a powered rod can be as short as two service cycles.

6. What happens if I never replace my sacrificial anode rod?

Once a sacrificial rod is fully depleted, there is nothing left to attract corrosive elements away from the steel tank. Corrosion begins directly on the tank lining, which leads to rust, sediment, and eventually leaks. Most water heater manufacturer warranties require documented anode rod maintenance - a tank that fails from corrosion after the rod has been left unreplaced is typically not covered.

7. Does the Chromex powered rod work on all water heaters?

The Chromex Powered Titanium Anode Rod is designed for 40-89 gallon tanks with a standard top anode port and a nearby electrical outlet. It is not compatible with Bradford White heaters or tanks that use a hot water outlet anode. For those configurations, the Magnesium Anode Rods collection covers the most common sacrificial rod sizes. The Water Heater Tank Maintenance FAQ explains how to identify your anode port type before ordering.

Key Takeaways

• Sacrificial anode rods (magnesium or aluminum) corrode themselves to protect the steel tank. They work well but deplete every 3-5 years and must be replaced on a schedule.

• Powered anode rods use ICCP technology - a DC current through a titanium rod - to provide the same corrosion protection without consuming any material. They never deplete and require no replacement.

• Hard water and softened water both accelerate sacrificial rod depletion significantly. Powered rods are unaffected by water chemistry and are the preferred long-term solution in these conditions.

• Powered rods eliminate the electrochemical conditions that cause rotten egg odor. Magnesium rods can worsen odor in certain water types.

• Sacrificial rods remain the right choice for Bradford White tanks, outlet-anode configurations, tanks without a nearby outlet, and budget-constrained near-end-of-life installations.

• The Chromex Powered Titanium Anode Rod fits 40-89 gallon standard top-port tanks and ships with all hardware for a complete DIY install. A kit with hydrogen peroxide is also available for tanks with active odor.
